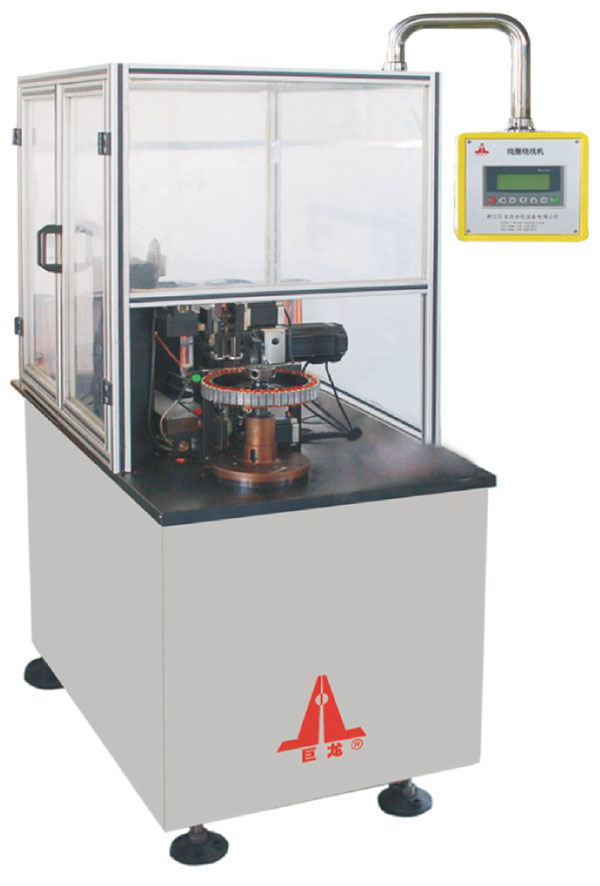

（單工位）ESW-1型 定子繞線機
上傳時間：2019-06-04
ESW-1 Electric Bicycle Wire Winding Machine
適用于電動車定子的自動繞線。采用人工放入工件，人工定位、自動分度、仿人工嵌入式繞線、人工剪線、PLC程控、觸摸屏修改參數。
Suitable for the electric bicycle stator
automatic winding. Manual put workpiece, manual positioning, automatic indexing. Winding in imitation of manual
embedding ,manual cutting wire, PLC , touching screen changing paramters.
技術參數/Technicai Parameters
|
電源電壓Supply voltage
|
AC380V±10% 50Hz
|
|
氣源壓力Air pressure
|
0.5~0.7MPa
|
|
功率Total
power
|
2kw
|
|
定子外徑Stator Outer Diameter
|
Φ198/Φ266mm
|
|
定子疊厚Amature Depth
|
14~50mm
|
|
可繞線徑Wire Diameter
|
0.3~0.6mm
|
|
可繞線根數Number of wire
|
1-13
|
